VAC0004 Diaphragm Compressor Cum Vacuum Pump

Get a Price/Quote

Product Details:

Discharge Pressure Up to 2.0 kg/cm2
Noise Level < 60 dB
Working Temperature 5C to 40C
Theory Diaphragm Compressor/Vacuum Pump
Mounting Type Rubber Feet for Anti Vibration
Max Suction 650 mm Hg
Features Corrosion Resistant, Maintenance Free, Continuous Duty
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

VAC0004 Diaphragm Compressor Cum Vacuum Pump Price And Quantity

Minimum Order Quantity 1 Unit

Weight Approx. 6.5 kg
Service Life Long Service Life, Designed for Continuous Operation
Vacuum Connection Type Hose Barb
Dimensions Approx. 260 x 140 x 210 mm (L x W x H)
Cooling System Air Cooled
Number of Heads Single Head
Insulation Class Class B
Motor Type Induction Motor
Color Grey & Black

VAC0004 Diaphragm Compressor Cum Vacuum Pump Product Specifications

Suction Type Oil-Free
Priming Self-Priming
Noise Level < 60 dB
Pump Type Oil-Free Diaphragm
Working Temperature 5C to 40C
Standard Laboratory Grade
Discharge Pressure Up to 2.0 kg/cm2
Pressure Approximately 2.0 kg/cm2
Features Corrosion Resistant, Maintenance Free, Continuous Duty
Max Suction 650 mm Hg
Usage Laboratory, Gas Sampling, Filtration, Vacuum Distillation, Compressing Air
Frequency 50 Hz
Flow Rate 30 liters/minute
Theory Diaphragm Compressor/Vacuum Pump
Mounting Type Rubber Feet for Anti Vibration
Seals Type Diaphragm Type Seal
Fuel Type Electrical
Material Aluminum Body, Diaphragm made of Nitrile Rubber
Structure Portable Table Top
Voltage 220 V AC, 50 Hz
Application Chemical, Pharmaceutical, Medical, Laboratory
Caliber Standard
Power 60 Watts
Inlet/Outlet 1/4 BSP
Speed 1450 RPM
Capacity 30 liters/minute
Control System Manual

Weight Approx. 6.5 kg
Service Life Long Service Life, Designed for Continuous Operation
Vacuum Connection Type Hose Barb
Dimensions Approx. 260 x 140 x 210 mm (L x W x H)
Cooling System Air Cooled
Number of Heads Single Head
Insulation Class Class B
Motor Type Induction Motor
Color Grey & Black

VAC0004 Diaphragm Compressor Cum Vacuum Pump Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 15 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Diaphragm Vacuum Pump' category

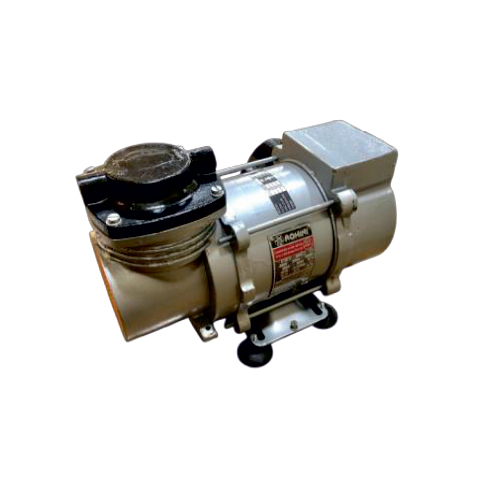

VAC0012 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Suction Type : Single Stage Priming : Self Priming Noise Level : Low Pump Type : Other, Oil Free Diaphragm Standard : Conforming to IS: 8437 Working Temperature : Up to 40C Discharge Pressure : 2.1 kg/cm2 Pressure : Other, 2.1 kg/cm2 Features : Corrosion Resistant, Maintenance Free, Oil Free Operation Max Suction : 650 mm Hg Usage : Other, Laboratory / General Purpose Frequency : 50 Hz Flow Rate : 20 LPM Theory : Other, Diaphragm Compressor Cum Vacuum Pump Mounting Type : Bench Top Seals Type : Diaphragm Type Fuel Type : Other, Electric Material : Aluminium Casting & Teflon Diaphragm Structure : Other, Portable Bench Model Voltage : 220V AC Application : Other, Filtration, Vacuum Distillation, Gas Transfer, Laboratory Use Caliber : Standard Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Speed : 1440 RPM Control System : Manual Capacity : 20 LPM Head Size : Standard

Send Inquiry

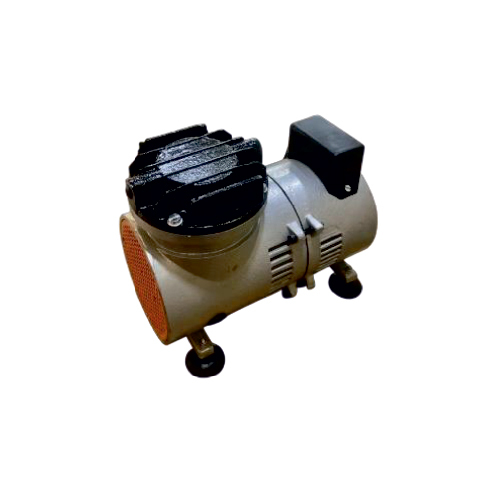

VAC0006 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Suction Type : Dry Suction Priming : Self Priming Noise Level : Low (approx. 60 dB) Pump Type : Other, Diaphragm / OilFree Pump Standard : ISI Marked Motor Working Temperature : 5C 40C Discharge Pressure : Up to 2.2 Bar Pressure : Other, 2.2 Bar (Max Discharge) Features : OilFree, MaintenanceFree, Lightweight, Portable Max Suction : 650 mm Hg (Vacuum) Usage : Other, Laboratory / Industrial Use Frequency : 50 Hz Flow Rate : 40 L/min (Approx.) Theory : Other, Diaphragm Compressor Cum Vacuum Pump Mounting Type : Table Top Seals Type : Diaphragm Seal Fuel Type : Other, Electric Material : Aluminium Body, Diaphragm Neoprene Rubber Structure : Other, Portable, Oilless Voltage : 220 V / 50 Hz AC Application : Other, Filtration, Vacuum Distillation, Suction, Compressor Uses Caliber : Compact Power : Other, 1/16 HP Inlet/Outlet : 6 mm Hose Nozzle Speed : 2800 RPM Control System : Manual Capacity : Continuous Operation

Send Inquiry

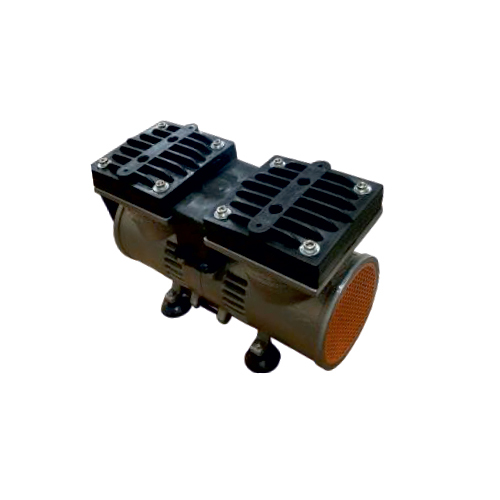

VAC0008 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Suction Type : Oil Free Priming : Self Priming Noise Level : < 60 dB Pump Type : Other, Compressor Cum Vacuum Pump Standard : Lab Grade Working Temperature : 5C40C Discharge Pressure : Up to 2.1 Kg/cm2 Pressure : Other, 2.1 Kg/cm2 (Max) Features : Oil Free, Low Maintenance, Compact Design Max Suction : 650 mm Hg Usage : Other, Compressor & Vacuum Applications Frequency : 50 Hz Flow Rate : 2025 LPM Theory : Other, Diaphragm Pump Mounting Type : Base Mounted Seals Type : Nitrile / PTFE Fuel Type : Other, Electric Material : Aluminum Die Cast Structure : Other, Diaphragm Type Voltage : 220 V / 50 Hz AC Application : Other, Filtration, Vacuum Drying, Rotary Evaporators Caliber : Standard Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Speed : 1440 RPM Control System : Manual On/Off Capacity : 2025 Liters per Minute Head Size : Compact

Send Inquiry

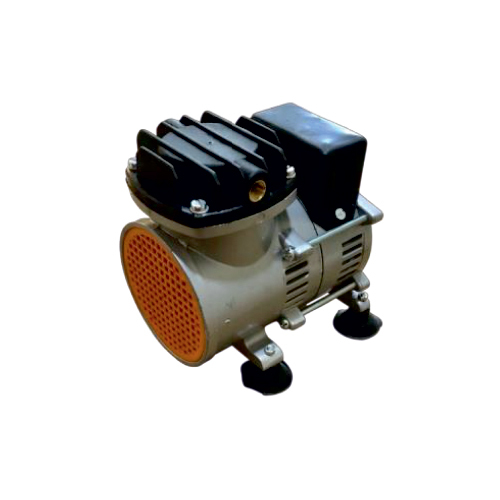

VAC0002 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Suction Type : Dry Suction Priming : SelfPriming Noise Level : <60 dB Pump Type : Other, Diaphragm Compressor Cum Vacuum Pump Standard : Laboratory Standard Working Temperature : 5C to 50C Discharge Pressure : 2.6 kg/cm2 Pressure : Other, 2.6 kg/cm2 (Max) Features : OilFree, Low Maintenance, Portable, Corrosion Resistant Max Suction : 650 mm Hg (Vacuum) Usage : Other, Laboratory Applications Frequency : 50 Hz Flow Rate : 28 LPM (Free Air Displacement) Theory : Other, Diaphragm Pump Mounting Type : Base Mounted Seals Type : Diaphragm Sealing Fuel Type : Other, Electric Material : Aluminum Alloy Body and PTFE Diaphragm Structure : Other, Single Head, OilFree Voltage : 230V AC, 50 Hz Application : Other, Filtration, Vacuum Distillation, Solvent Extraction Caliber : Standard Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Speed : 1420 RPM Control System : On/Off Switch Capacity : 28 Liters per Minute

Send Inquiry
