VAC0002 Diaphragm Compressor Cum Vacuum Pump

Get a Price/Quote

Product Details:

Features Oil-Free, Low Maintenance, Portable, Corrosion Resistant
Theory Diaphragm Pump
Max Suction 650 mm Hg (Vacuum)
Caliber Standard
Inlet/Outlet 1/4 BSP
Working Temperature 5C to 50C
Voltage 230V AC, 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

VAC0002 Diaphragm Compressor Cum Vacuum Pump Price And Quantity

Minimum Order Quantity 1 Unit

Included Accessories Rubber Feet, Carry Handle
Weight Approx. 8 kg
Dimensions 340 mm x 270 mm x 235 mm
Cooling System Air Cooled
Protection Class IP44
Motor Type Induction Motor
Continuous Operation Suitable for Continuous Use

VAC0002 Diaphragm Compressor Cum Vacuum Pump Product Specifications

Usage Laboratory Applications
Priming Self-Priming
Capacity 28 Liters per Minute
Material Aluminum Alloy Body and PTFE Diaphragm
Frequency 50 Hz
Discharge Pressure 2.6 kg/cm2
Flow Rate 28 LPM (Free Air Displacement)
Pump Type Diaphragm Compressor Cum Vacuum Pump
Speed 1420 RPM
Mounting Type Base Mounted
Control System On/Off Switch
Suction Type Dry Suction
Pressure 2.6 kg/cm2 (Max)
Power 1/8 HP
Features Oil-Free, Low Maintenance, Portable, Corrosion Resistant
Seals Type Diaphragm Sealing
Standard Laboratory Standard
Theory Diaphragm Pump
Max Suction 650 mm Hg (Vacuum)
Inlet/Outlet 1/4 BSP
Caliber Standard
Application Filtration, Vacuum Distillation, Solvent Extraction
Working Temperature 5C to 50C
Fuel Type Electric
Structure Single Head, Oil-Free
Noise Level <60 dB
Voltage 230V AC, 50 Hz

Included Accessories Rubber Feet, Carry Handle
Weight Approx. 8 kg
Dimensions 340 mm x 270 mm x 235 mm
Cooling System Air Cooled
Protection Class IP44
Motor Type Induction Motor
Continuous Operation Suitable for Continuous Use

VAC0002 Diaphragm Compressor Cum Vacuum Pump Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 15 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Diaphragm Vacuum Pump' category

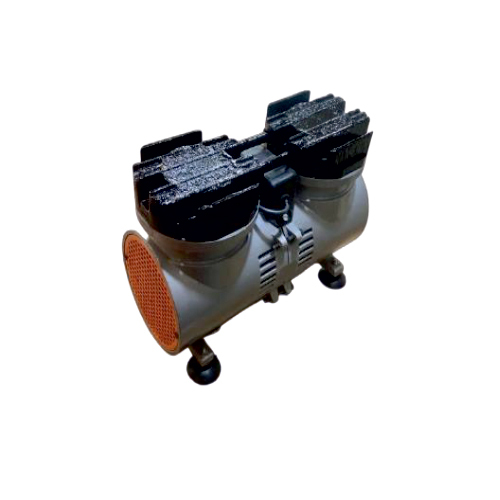

VAC0010 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Speed : 1440 RPM Pump Type : Other, Oilless Diaphragm Pump Mounting Type : Table Top Control System : Manual Switch Suction Type : Positive Displacement Usage : Other, Vacuum & Compression, Laboratory Priming : Self Priming Material : Aluminium Body with Diaphragm Rubber Capacity : 10 Litres per Minute Frequency : 50 Hz Discharge Pressure : 30 PSI (max) Flow Rate : 10 LPM Caliber : 6 mm Inlet/Outlet : 1/4 (6 mm) Hose Barb Application : Other, Medical, Laboratory, Filtration, Gas Sampling Working Temperature : 5C to 40C Fuel Type : Other, Electric Noise Level : < 60 dB Structure : Other, Single Head, Monoblock Voltage : 220V AC Pressure : Other, 2.1 kg/cm2 (max) Power : Other, 1/20 HP (37 Watts) Features : Oilless, MaintenanceFree, Portable Standard : Laboratory Standard Seals Type : Diaphragm Theory : Other, Diaphragm Pump Max Suction : 550 mm Hg Head Size : Standard

Send Inquiry

VAC0008 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Speed : 1440 RPM Pump Type : Other, Compressor Cum Vacuum Pump Mounting Type : Base Mounted Control System : Manual On/Off Suction Type : Oil Free Usage : Other, Compressor & Vacuum Applications Priming : Self Priming Material : Aluminum Die Cast Capacity : 2025 Liters per Minute Frequency : 50 Hz Discharge Pressure : Up to 2.1 Kg/cm2 Flow Rate : 2025 LPM Caliber : Standard Inlet/Outlet : 1/4 BSP Application : Other, Filtration, Vacuum Drying, Rotary Evaporators Working Temperature : 5C40C Fuel Type : Other, Electric Noise Level : < 60 dB Structure : Other, Diaphragm Type Voltage : 220 V / 50 Hz AC Pressure : Other, 2.1 Kg/cm2 (Max) Power : Other, 1/8 HP Features : Oil Free, Low Maintenance, Compact Design Standard : Lab Grade Seals Type : Nitrile / PTFE Theory : Other, Diaphragm Pump Max Suction : 650 mm Hg Head Size : Compact

Send Inquiry

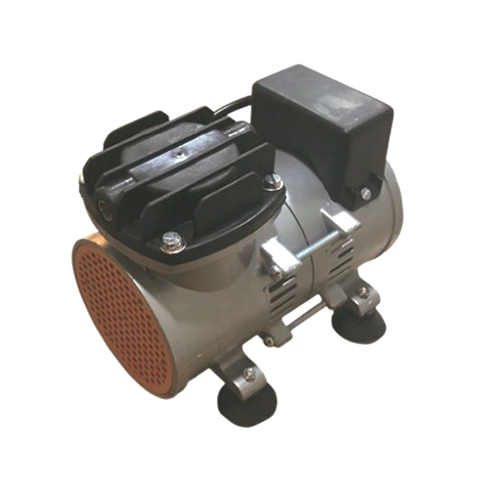

Diaphragm Type Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Speed : 14001450 RPM Pump Type : Other, Compressor Cum Vacuum Pump Mounting Type : Foot Mounted Control System : Manual On/Off Suction Type : Positive displacement Usage : Other, Laboratory, Medical, Filtration, Vacuum and Compressor applications Priming : Selfpriming Material : Aluminum alloy and engineering plastics Capacity : 1520 L/min Frequency : 50 Hz Discharge Pressure : 2.3 Kg/cm2 Flow Rate : ~1520 L/min Caliber : Standard Inlet/Outlet : 1/4 BSP Application : Other, Chemical, Laboratory, Industrial Working Temperature : 5C to 40C Fuel Type : Other, Electric Noise Level : < 60 dB Structure : Other, Compact, Portable Voltage : 220V / 50Hz Pressure : Other, 2.3 Kg/cm2 (Max) Power : Other, 80W 100W Features : Oilfree, Maintenancefree, Corrosionresistant, Lightweight, Silent Operation Standard : IS/ISO Certified Seals Type : OilFree Diaphragm Theory : Other, Diaphragm Pump Max Suction : 550 mm Hg

Send Inquiry

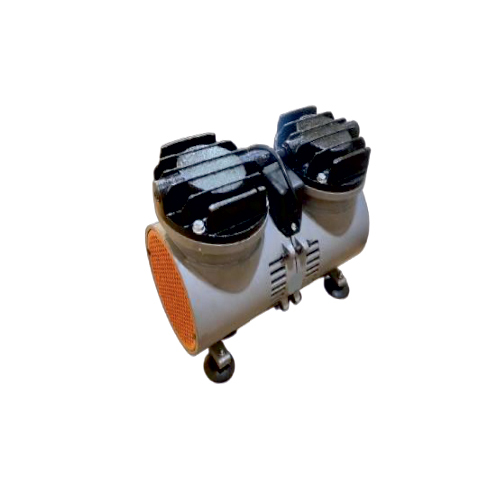

VAC0009 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Speed : 1400 RPM Pump Type : Other, Oilfree Diaphragm Mounting Type : Foot Mounted Control System : Manual Suction Type : Dry Usage : Other, Laboratory, Industrial Priming : Selfpriming Material : Aluminium & Engineering Plastic Capacity : 10 L/min Frequency : 50Hz Discharge Pressure : 2.5 bar (Max) Flow Rate : 10 L/min Caliber : 6 mm Inlet/Outlet : 6 mm Hose Barb Application : Other, Compressor & Vacuum Pump Working Temperature : 5C to 40C Fuel Type : Other, Electric Noise Level : <60 dB(A) Structure : Other, Singlehead Diaphragm Voltage : 220V / 50Hz Pressure : Other, 2.5 bar Power : Other, 60 Watts Features : Oilfree, Maintenance free, Portable Standard : CE Certified Seals Type : Diaphragm Theory : Other, Diaphragm Pump Max Suction : 0.08 Mpa
