VAC0010 Diaphragm Compressor Cum Vacuum Pump

Get a Price/Quote

Product Details:

Theory Diaphragm Pump
Features Oil-less, Maintenance-Free, Portable
Voltage 220V AC
Speed 1440 RPM
Frequency 50 Hz
Head Size Standard
Control System Manual Switch
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

VAC0010 Diaphragm Compressor Cum Vacuum Pump Price And Quantity

Minimum Order Quantity 1 Unit

Dimensions Approx. 235 x 150 x 180 mm
Cooling Type Air Cooled
Operation Mode Continuous Duty
Power Consumption 37 Watts
Weight Approx. 4.2 kg

VAC0010 Diaphragm Compressor Cum Vacuum Pump Product Specifications

Control System Manual Switch
Fuel Type Electric
Usage Vacuum & Compression, Laboratory
Head Size Standard
Frequency 50 Hz
Application Medical, Laboratory, Filtration, Gas Sampling
Speed 1440 RPM
Pressure 2.1 kg/cm2 (max)
Voltage 220V AC
Material Aluminium Body with Diaphragm Rubber
Features Oil-less, Maintenance-Free, Portable
Theory Diaphragm Pump
Suction Type Positive Displacement
Working Temperature 5C to 40C
Priming Self Priming
Noise Level < 60 dB
Max Suction 550 mm Hg
Power 1/20 HP (37 Watts)
Inlet/Outlet 1/4 (6 mm) Hose Barb
Seals Type Diaphragm
Mounting Type Table Top
Flow Rate 10 LPM
Caliber 6 mm
Structure Single Head, Monoblock
Pump Type Oil-less Diaphragm Pump
Capacity 10 Litres per Minute
Discharge Pressure 30 PSI (max)
Standard Laboratory Standard

Dimensions Approx. 235 x 150 x 180 mm
Cooling Type Air Cooled
Operation Mode Continuous Duty
Power Consumption 37 Watts
Weight Approx. 4.2 kg

VAC0010 Diaphragm Compressor Cum Vacuum Pump Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 15 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Diaphragm Vacuum Pump' category

VAC0012 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Capacity : 20 LPM Pump Type : Other, Oil Free Diaphragm Structure : Other, Portable Bench Model Standard : Conforming to IS: 8437 Discharge Pressure : 2.1 kg/cm2 Max Suction : 650 mm Hg Noise Level : Low Priming : Self Priming Flow Rate : 20 LPM Mounting Type : Bench Top Seals Type : Diaphragm Type Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Suction Type : Single Stage Working Temperature : Up to 40C Theory : Other, Diaphragm Compressor Cum Vacuum Pump Voltage : 220V AC Speed : 1440 RPM Pressure : Other, 2.1 kg/cm2 Material : Aluminium Casting & Teflon Diaphragm Features : Corrosion Resistant, Maintenance Free, Oil Free Operation Frequency : 50 Hz Application : Other, Filtration, Vacuum Distillation, Gas Transfer, Laboratory Use Fuel Type : Other, Electric Control System : Manual Usage : Other, Laboratory / General Purpose Caliber : Standard

Send Inquiry

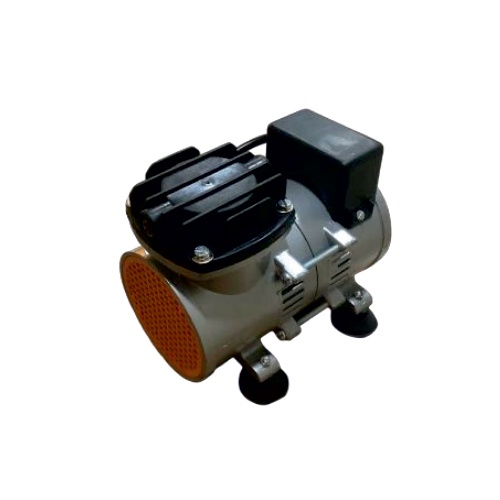

VAC0001 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Capacity : 35 L/min Pump Type : Other, OilFree Diaphragm Compressor Cum Vacuum Pump Structure : Other, Double Head Standard : CE Certified Discharge Pressure : Up to 2.5 kg/cm2 Max Suction : 650 mm Hg Noise Level : <60 dB Priming : SelfPriming Flow Rate : 35 L/min Mounting Type : Table Top / Portable Seals Type : Diaphragm Sealed Power : Other, 60 Watts Inlet/Outlet : 6 mm (approx) Suction Type : Double head Working Temperature : 10C to 60C Theory : Other, Diaphragm Pump Voltage : 220V / 110V Speed : 1400 rpm Pressure : Other, Max. 2.5 kg/cm2 Material : Aluminium & Engineering Plastic Features : OilFree, MaintenanceFree, Portable Frequency : 50/60 Hz Application : Other, Chemical, Pharmaceutical, Laboratory Use Fuel Type : Other, Electric Control System : Manual On/Off Usage : Other, Laboratory, Vaccum & Compressor Applications Caliber : 6 mm
