VAC0007 Diaphragm Compressor Cum Vacuum Pump

Get a Price/Quote

Product Details:

Noise Level <60 dB
Voltage 220V-240V AC, 50Hz
Speed 1440 RPM
Features Oil-free, Maintenance-free, Portable
Max Suction 650 mm Hg
Flow Rate 30 Litres/min
Discharge Pressure 2.1 kg/cm2
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

VAC0007 Diaphragm Compressor Cum Vacuum Pump Price And Quantity

Minimum Order Quantity 1 Unit

Colour Grey & Black
Insulation Class Class B Insulation
Dimensions (LxWxH) 275 x 145 x 190 mm
Service Duty Continuous
Protection Thermal Overload Protector
Motor Type Induction Motor, Copper Winding
Net Weight 6.5 kg
Max Vacuum 650 mm Hg (0.85 bar)

VAC0007 Diaphragm Compressor Cum Vacuum Pump Product Specifications

Usage Vacuum Filtration, Air Suction, Air Compression
Features Oil-free, Maintenance-free, Portable
Max Suction 650 mm Hg
Seals Type Diaphragm Sealed
Discharge Pressure 2.1 kg/cm2
Flow Rate 30 Litres/min
Noise Level <60 dB
Speed 1440 RPM
Voltage 220V-240V AC, 50Hz
Pump Type Oil-Free Diaphragm Compressor Cum Vacuum Pump
Material Aluminium Die Cast Body with Oil-free Diaphragm
Capacity 30 LPM
Fuel Type Electric
Suction Type Dry Suction
Application Laboratory, Industrial, Analytical Instruments, Filtration
Theory Diaphragm Pump
Pressure 2.1 kg/cm2
Mounting Type Rubber Foot Mount
Standard IS Standard
Inlet/Outlet 1/4 inch (6 mm) Hose Nozzle
Structure Single Head, Oil-less
Power 1/16 HP
Frequency 50 Hz
Priming Self Priming
Working Temperature 5C to 50C
Control System Manual ON/OFF Switch

Colour Grey & Black
Insulation Class Class B Insulation
Dimensions (LxWxH) 275 x 145 x 190 mm
Service Duty Continuous
Protection Thermal Overload Protector
Motor Type Induction Motor, Copper Winding
Net Weight 6.5 kg
Max Vacuum 650 mm Hg (0.85 bar)

VAC0007 Diaphragm Compressor Cum Vacuum Pump Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 15 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Diaphragm Vacuum Pump' category

VAC0010 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Flow Rate : 10 LPM Discharge Pressure : 30 PSI (max) Seals Type : Diaphragm Max Suction : 550 mm Hg Usage : Other, Vacuum & Compression, Laboratory Features : Oilless, MaintenanceFree, Portable Pump Type : Other, Oilless Diaphragm Pump Voltage : 220V AC Speed : 1440 RPM Noise Level : < 60 dB Mounting Type : Table Top Pressure : Other, 2.1 kg/cm2 (max) Theory : Other, Diaphragm Pump Application : Other, Medical, Laboratory, Filtration, Gas Sampling Suction Type : Positive Displacement Capacity : 10 Litres per Minute Fuel Type : Other, Electric Material : Aluminium Body with Diaphragm Rubber Control System : Manual Switch Working Temperature : 5C to 40C Priming : Self Priming Caliber : 6 mm Frequency : 50 Hz Structure : Other, Single Head, Monoblock Power : Other, 1/20 HP (37 Watts) Inlet/Outlet : 1/4 (6 mm) Hose Barb Standard : Laboratory Standard Head Size : Standard

Send Inquiry

VAC0012 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Flow Rate : 20 LPM Discharge Pressure : 2.1 kg/cm2 Seals Type : Diaphragm Type Max Suction : 650 mm Hg Usage : Other, Laboratory / General Purpose Features : Corrosion Resistant, Maintenance Free, Oil Free Operation Pump Type : Other, Oil Free Diaphragm Voltage : 220V AC Speed : 1440 RPM Noise Level : Low Mounting Type : Bench Top Pressure : Other, 2.1 kg/cm2 Theory : Other, Diaphragm Compressor Cum Vacuum Pump Application : Other, Filtration, Vacuum Distillation, Gas Transfer, Laboratory Use Suction Type : Single Stage Capacity : 20 LPM Fuel Type : Other, Electric Material : Aluminium Casting & Teflon Diaphragm Control System : Manual Working Temperature : Up to 40C Priming : Self Priming Caliber : Standard Frequency : 50 Hz Structure : Other, Portable Bench Model Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Standard : Conforming to IS: 8437 Head Size : Standard

Send Inquiry

VAC0002 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Flow Rate : 28 LPM (Free Air Displacement) Discharge Pressure : 2.6 kg/cm2 Seals Type : Diaphragm Sealing Max Suction : 650 mm Hg (Vacuum) Usage : Other, Laboratory Applications Features : OilFree, Low Maintenance, Portable, Corrosion Resistant Pump Type : Other, Diaphragm Compressor Cum Vacuum Pump Voltage : 230V AC, 50 Hz Speed : 1420 RPM Noise Level : <60 dB Mounting Type : Base Mounted Pressure : Other, 2.6 kg/cm2 (Max) Theory : Other, Diaphragm Pump Application : Other, Filtration, Vacuum Distillation, Solvent Extraction Suction Type : Dry Suction Capacity : 28 Liters per Minute Fuel Type : Other, Electric Material : Aluminum Alloy Body and PTFE Diaphragm Control System : On/Off Switch Working Temperature : 5C to 50C Priming : SelfPriming Caliber : Standard Frequency : 50 Hz Structure : Other, Single Head, OilFree Power : Other, 1/8 HP Inlet/Outlet : 1/4 BSP Standard : Laboratory Standard

Send Inquiry

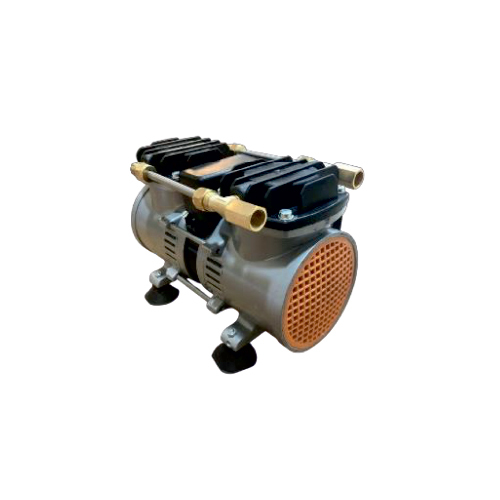

VAC0004 Diaphragm Compressor Cum Vacuum Pump Minimum Order Quantity : 1 Flow Rate : 30 liters/minute Discharge Pressure : Up to 2.0 kg/cm2 Seals Type : Diaphragm Type Seal Max Suction : 650 mm Hg Usage : Other, Laboratory, Gas Sampling, Filtration, Vacuum Distillation, Compressing Air Features : Corrosion Resistant, Maintenance Free, Continuous Duty Pump Type : Other, OilFree Diaphragm Voltage : 220 V AC, 50 Hz Speed : 1450 RPM Noise Level : < 60 dB Mounting Type : Rubber Feet for Anti Vibration Pressure : Other, Approximately 2.0 kg/cm2 Theory : Other, Diaphragm Compressor/Vacuum Pump Application : Other, Chemical, Pharmaceutical, Medical, Laboratory Suction Type : OilFree Capacity : 30 liters/minute Fuel Type : Other, Electrical Material : Aluminum Body, Diaphragm made of Nitrile Rubber Control System : Manual Working Temperature : 5C to 40C Priming : SelfPriming Caliber : Standard Frequency : 50 Hz Structure : Other, Portable Table Top Power : Other, 60 Watts Inlet/Outlet : 1/4 BSP Standard : Laboratory Grade

Send Inquiry
