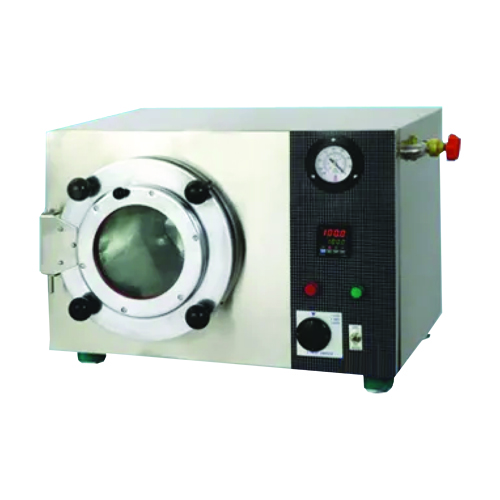

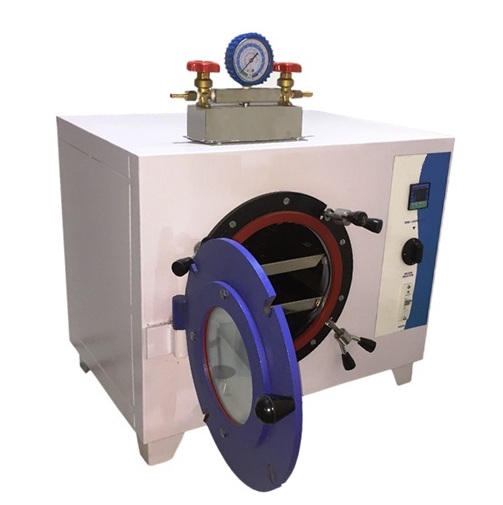

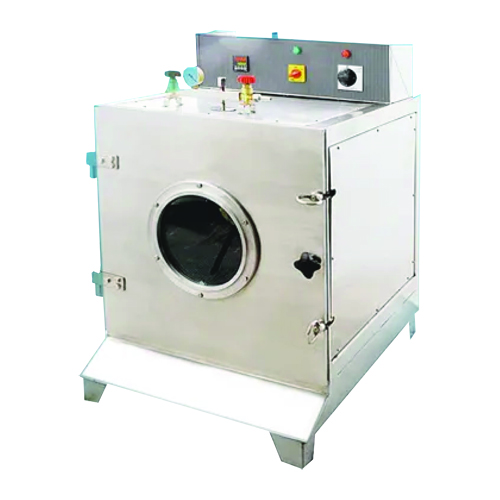

Vacuum Oven

Name: STD Model Vacuum Oven
Brand: SRTEK INSTRUMENTS PRIVATE LIMITED
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vacuum Oven Specification

Features
Uniform heating, Vacuum sealing with gasket, Leak proof design, Vacuum gauge, Safety thermostat

Glass Type
Toughened/Tempered Glass Window

Shape
Rectangular

Control Type
Digital temperature controller with indicator

Display Type
Digital

Accuracy
1C

Temperature Resistance
Up to 200C

Power Supply
Single Phase

Heating Capacity
Adjustable, up to maximum 200C

Type
STD Model Vacuum Oven

Dimension (L*W*H)
Approx. 300 x 300 x 300 mm or as specified

Equipment Type
Laboratory Heating Equipment

Equipment Materials
Outer body made of mild steel powder coated, inner chamber made of stainless steel

Power
1000 W

Voltage
230 V AC, 50 Hz

Material
Stainless Steel (Inner), Powder Coated Mild Steel (Outer)

Application
Laboratory use, Heating and drying under vacuum

Capacity (Ltr)
Approx. 27 liters

Weight
Approx. 32-35 kg

Insulation
Mineral wool insulation for chamber

Vacuum Range
Up to 760 mm Hg

Door Gasket
Silicone rubber gasket for airtight sealing

Heater Location
Placed around the chamber for uniform heating

Chamber Volume
27 liters standard (customized sizes available)

Maximum Vacuum
1 mbar

Safety Features
Automatic cut-off, Over-temperature protection

Vacuum Gauge
Analog, mounted on front panel

Finish
Epoxy powder coated for corrosion resistance

Shelves
Removable stainless steel shelves

Vacuum Oven Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
2-10 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Vacuum Oven

Last Chance to get the STD Model Vacuum Oven - your ultimate solution for laboratory heating and drying under vacuum. This top-notch oven offers a vacuum range up to 760 mm Hg and a chamber volume of 27 liters, with customizable sizes available. Built with stainless steel interiors and mineral wool insulation for optimum heat retention, it features removable shelves, digital temperature control (accuracy 1C), and safety cut-offs. Order today for excellent performance, uniform heating, and leak-proof vacuum sealing, all in a robust, corrosion-resistant finish.

Versatile Uses & Enhanced Features of STD Model Vacuum Oven

The STD Model Vacuum Oven is not limited to standard laboratory heating. It is widely used for degassing, drying delicate samples, desiccating, aging tests, curing, and research applications. This equipment offers extra features such as a toughened glass viewing window, digital temperature controller, and safety thermostat. Its leak-proof, airtight design ensures reliability, while removable stainless steel shelves provide flexibility for diverse applications.

Global Shipment & Domestic Support - Export and Payment Information

Our STD Model Vacuum Oven is sought after in global export markets, including Asia, Europe, Africa, and North America. We support reliable shipment and timely handover for all overseas and Indian domestic market clients. Payment terms include advance payment, letter of credit, or mutual agreement, ensuring a seamless acquisition process. Experience top-quality support, whether for export shipment or local delivery, and benefit from our trusted manufacturing legacy in India.

FAQ's of STD Model Vacuum Oven:

Q: How does the STD Model Vacuum Oven ensure uniform heating?

A: The oven's heater is strategically placed around the chamber, coupled with mineral wool insulation, to guarantee even temperature distribution and consistent results during each use.

Q: What safety features are included in the STD Model Vacuum Oven?

A: This model provides automatic cut-off, over-temperature protection, a silicone rubber door gasket for airtight sealing, and a safety thermostat to safeguard both operators and samples.

Q: When should I use a vacuum oven in laboratory processes?

A: Vacuum ovens are ideal when gentle, controlled heating is required for moisture-sensitive, degradable, or heat-sensitive materials, as well as for degassing and drying applications.

Q: Where is the vacuum gauge located and what does it display?

A: The analog vacuum gauge is conveniently mounted on the oven's front panel, showing real-time vacuum levels inside the chamber for process accuracy and monitoring.

Q: What are the advantages of digital control in the vacuum oven?

A: The digital temperature controller with indicator ensures precise temperature regulation (up to 200C, 1C accuracy), making process monitoring efficient and reliable.
